Product details description
Introduction
Cylindrical Marine Rubber Fenders are simple to install and operate which makes these units an economical solution for remote locations and for multi user berths where vessel types cannot always be predicted.
Features
Simple and economic design
Easy to install, allowing multiple usage at different berths
Low reaction, reasonable energy absorption, low hull pressure
Versatile installation, vertical, horizontal, diagonal
Applications
Bulk cargo berths
General cargo quays
Ro-Ro and ferry terminals
Fishing and workboat berths
Pontoons and floating structures
Tug havens
Specifications

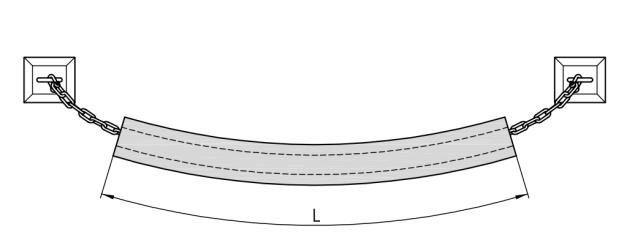

Fender size | Dimensions | Typcial Fixing Arrangements | |||
D (mm) | d (mm) | Max. (mm) | Approx weight (kg/m) | ||
CY150 x L | 150 | 75 | 10000 | 17.2 | |
CY200 x L | 200 | 100 | 10000 | 29 | |
CY250 x L | 250 | 125 | 10000 | 45.3 | |
CY300 xL | 300 | 150 | 10000 | 65.2 | |
CY350xL | 350 | 175 | 10000 | 94 | |
CY400 x L | 400 | 200 | 8000 | 116 | |
CY500 x L | 500 | 250 | 8000 | 181 | |
CY600 x L | 600 | 300 | 3000 | 255 |
|
CY700 x L | 700 | 350 | 3000 | 375 | |
CY800 x L | 800 | 400 | 3000 | 453 | |
CY900 x L | 900 | 450 | 3000 | 620 | |
CY1000 xL | 1000 | 500 | 3000 | 707 | |
CY1100xL | 1100 | 550 | 3000 | 766 | |
CY1200 x L | 1200 | 600 | 3000 | 1018 | |
CY1300xL | 1300 | 650 | 3000 | 1294 | |
CY1400 x L | 1400 | 700 | 3000 | 1386 | |
CY1500xL | 1500 | 750 | 3000 | 1591 |
|
CY1600 x L | 1600 | 800 | 3000 | 1810 | |
CY1700 x L | 1700 | 850 | 3000 | 2210 | |
CY1800xL | 1800 | 900 | 3000 | 2480 | |
CY1900xL | 1900 | 950 | 3000 | 2765 | |
CY2000xL | 2000 | 1000 | 3000 | 3063 | |
Note:Length are available on requests
Performance
Fender (mm) | Rate Compression Deformation50% | |||
Performance | ||||
RO | RH | |||
R(KN) | E(KN.M) | R(KN) | E(KN.M) | |
CY150 x 1000 | 44 | 1.5 | 73 | 2.3 |
CY200 x 1000 | 60 | 2.6 | 95 | 4.2 |
CY250 x 1000 | 75 | 4 | 120 | 6.5 |
CY300 x 1000 | 89 | 6.0 | 143 | 9 |
CY350 x 1000 | 104 | 8 | 167 | 13 |
CY400 x 1000 | 119 | 10 | 191 | 17 |
CY500 x 1000 | 148 | 16 | 239 | 26 |
CY600 x 1000 | 179 | 24 | 286 | 37 |
CY700 x 1000 | 208 | 31 | 334 | 50 |
CY800 x 1000 | 237 | 41 | 383 | 66 |
CY900 x 1000 | 268 | 52 | 430 | 84 |
CY1000 x 1000 | 297 | 64 | 479 | 103 |
CY1100 x 1000 | 331 | 77 | 528 | 129 |
CY1200 x 1000 | 363 | 95 | 574 | 152 |
CY1300 x 1000 | 392 | 108 | 623 | 179 |
CY1400 x 1000 | 422 | 128 | 670 | 208 |
CY1500 x 1000 | 451 | 147 | 718 | 238 |
CY1600 x 1000 | 481 | 176 | 776 | 282 |
CY1700 x 1000 | 511 | 206 | 824 | 338 |
CY1800 x 1000 | 541 | 247 | 872 | 406 |
CY1900 x 1000 | 570 | 288 | 920 | 487 |
CY2000 x 1000 | 653 | 321 | 1054 | 584 |
